HPVIe
HPVIe
Analog PMIC and Mixed-Signal

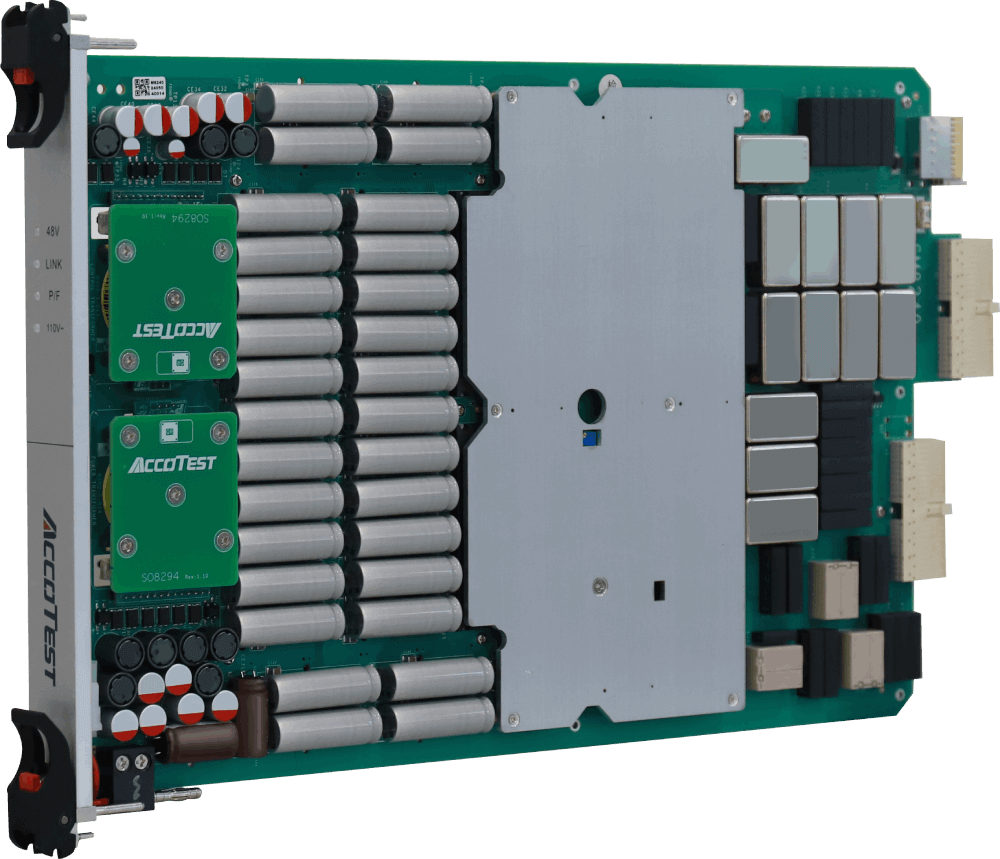

Floating High Power VI Source Measure Module for STS8300
Key Features
- Full floating one channel VI SMU
- Four Quadrant Capability
- 6 Force/Measure Voltage Ranges:
- ±100V, ±40V, ±20V, ±10V, ±5V, ±2V, ±100mV (measure)
- 11 Force/Measure Current Ranges:
- ±100A (pulse), ±50A (pulse), ±20A (pulse), ±10A (pulse)
- ±2A (pulse), ±1A, ±100mA, ±10mA, ±1mA, ±100µA, ±10 µA
- 6-Wire Kelvin Contact detect mode
